Monitor Mount System
Price range: € 580.00 through € 840.00

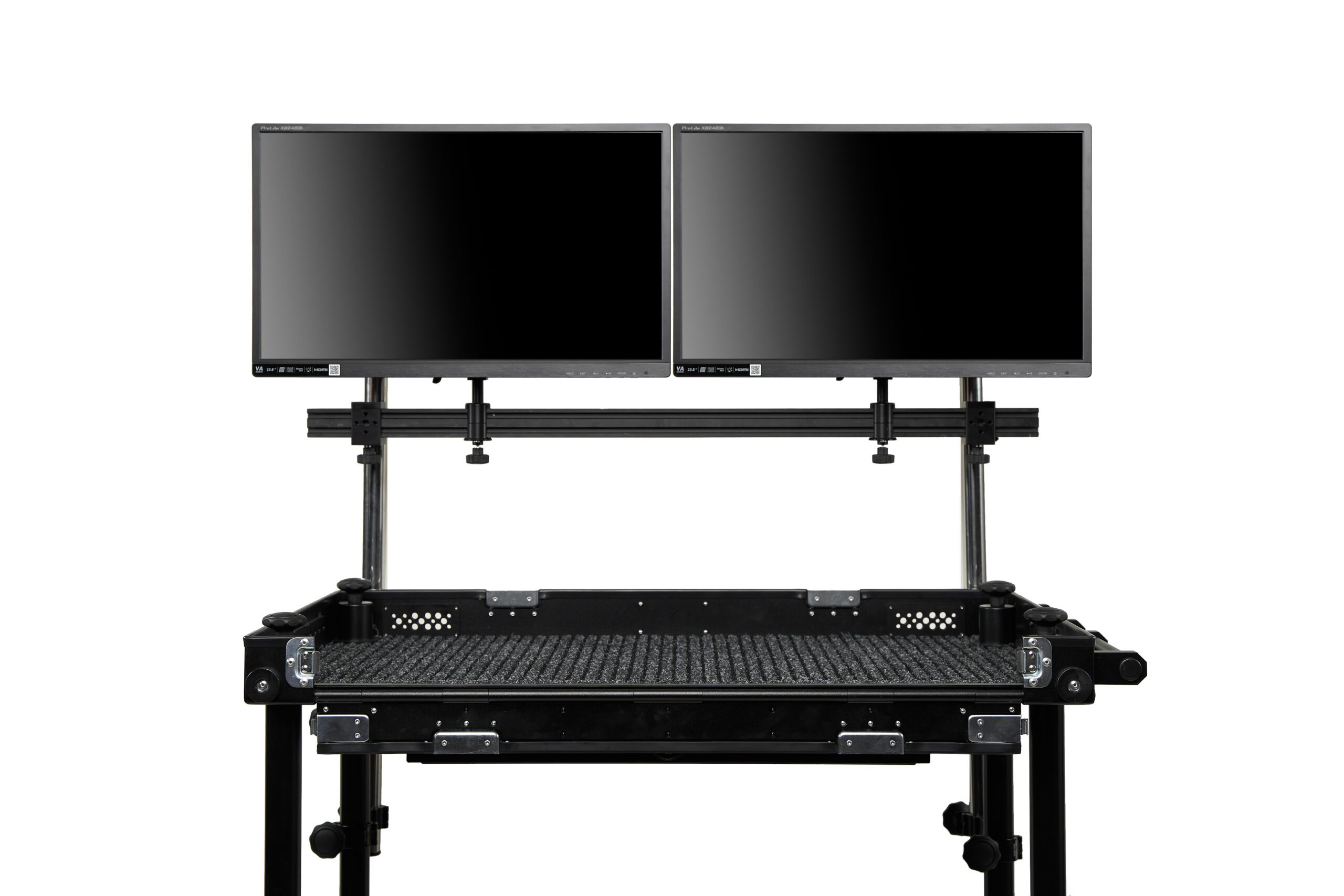

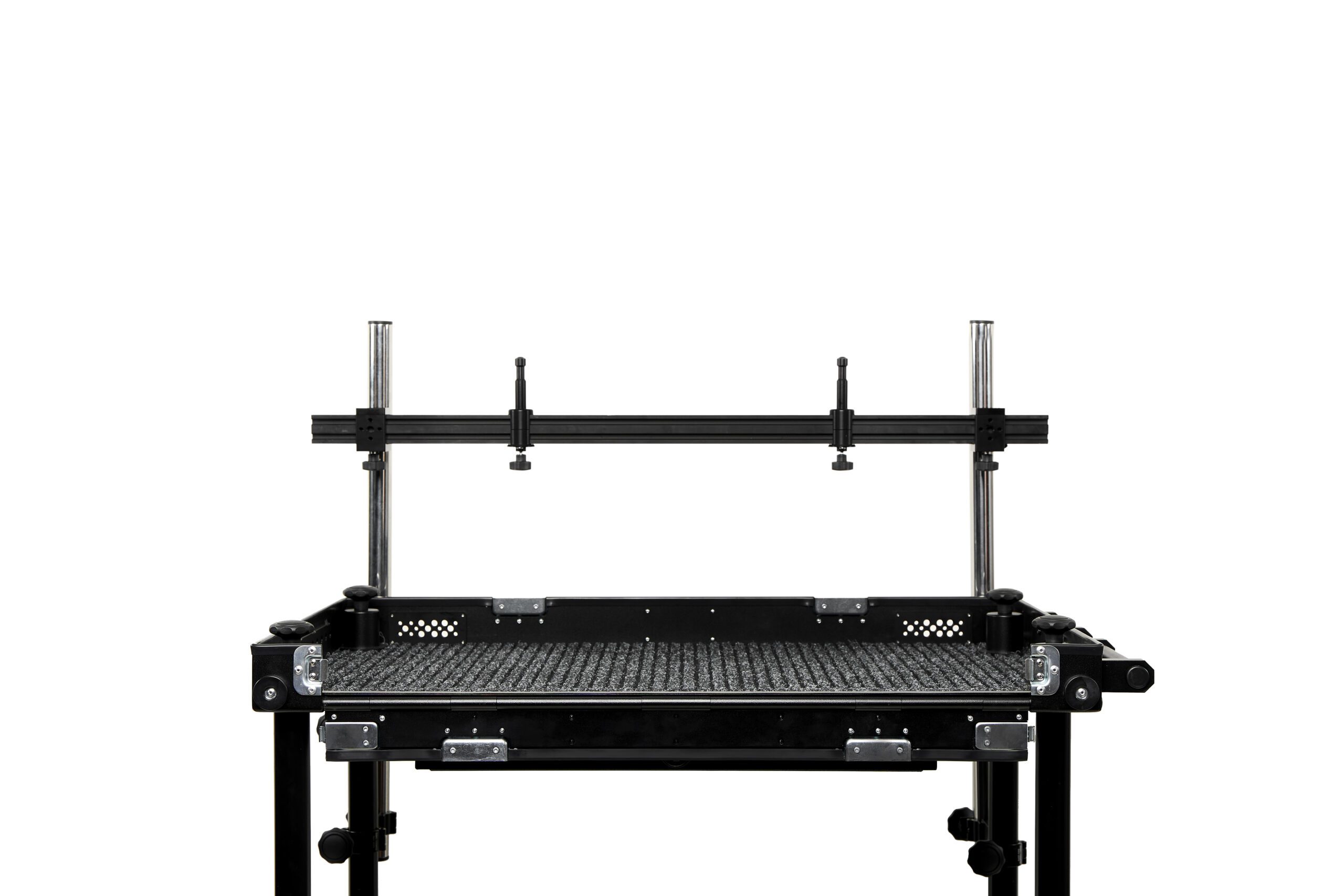

The adicam Monitor Mount System is a perfect solution for safe and secure mounting up to four monitors on your cart and turning it into a rolling command station. The modular design let you customize a single or double rail arrangement, offering numerous setup options.

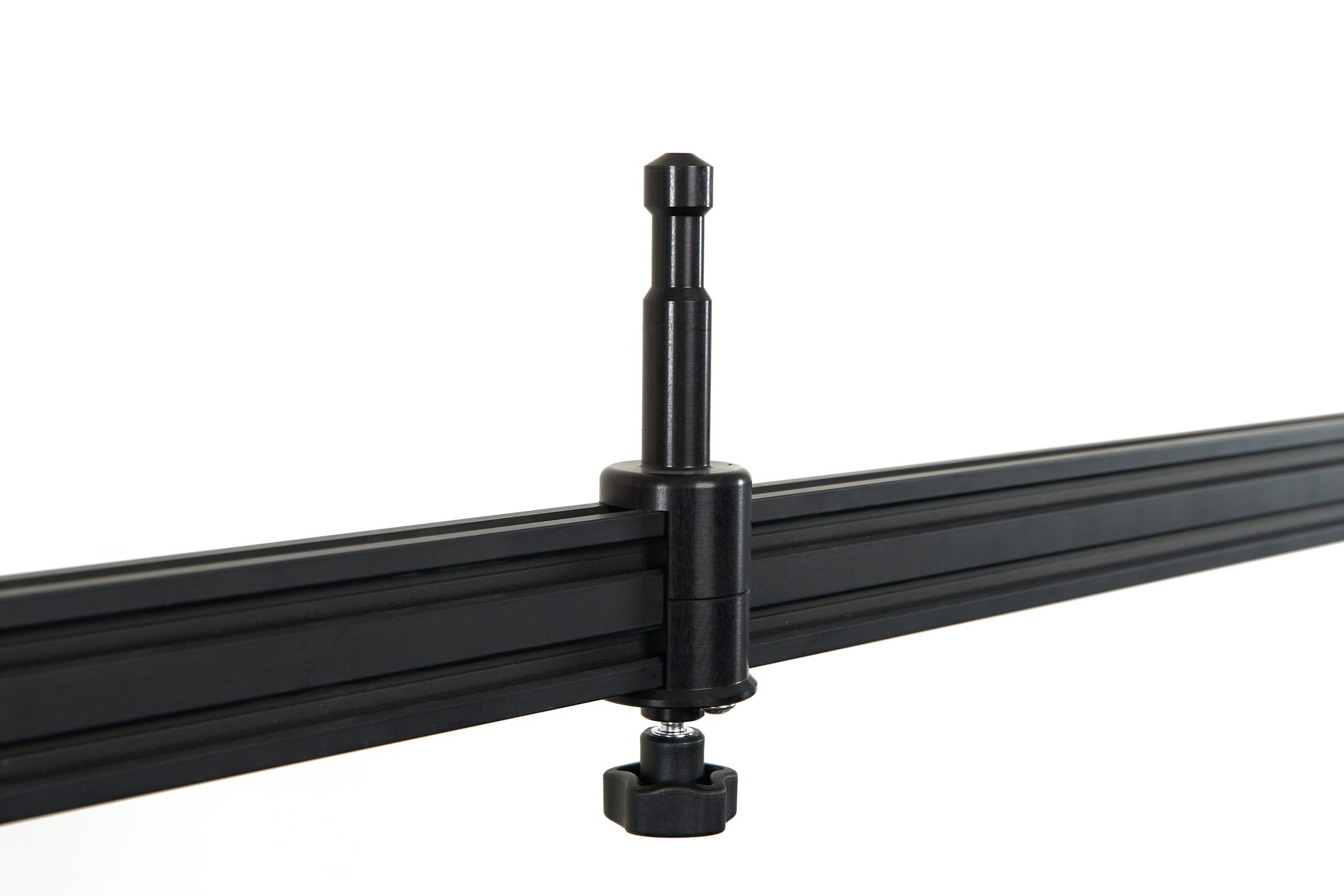

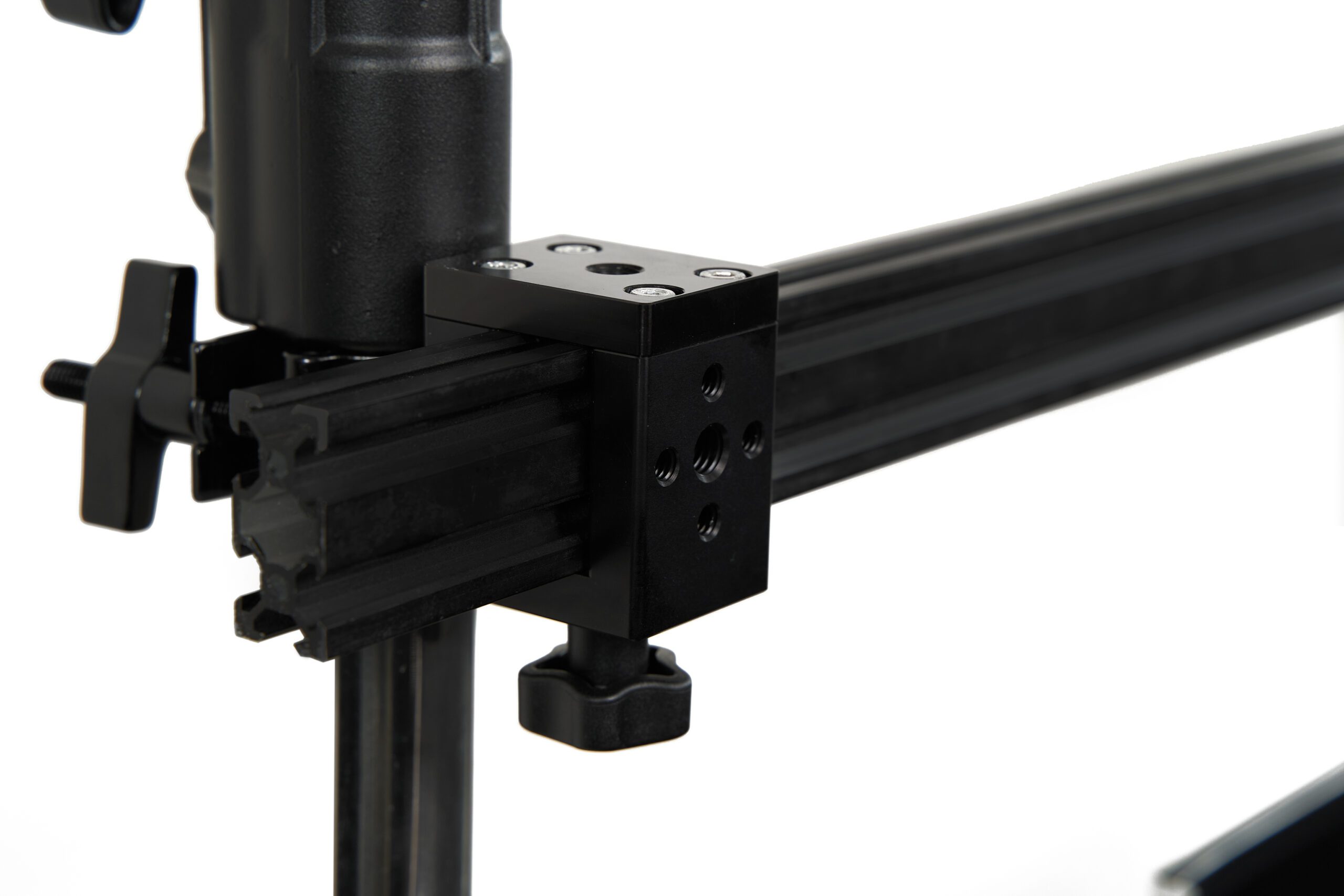

The mounting system is attached to the cart using two types of pipes (depending if you choose single or double rail) and short/long crossbar clamps. You don’t need to use any additional tools or to remove the top cover. Each rail is fitted with two rail brackets with additional mix of 1/4″ and 3/8″ threaded holes for photo/video equipment, as well as two sliding 5/8 baby pins. The aluminum components are lightweight, strong, and durable.
The adicam Monitor Mount System is designed to integrate with our popular Vesa Mount for 5/8” baby pin that supports 75mm/100mm Vesa monitors and is compatible with all our carts.
Weight:
Mini+/Mini Monitor Mount System Single Rail – 4,75 kg
Mini+/Mini Monitor Mount System Double Rail – 9,2 kg
Standard+/Standard Monitor Mount System Single Rail – 4,9 kg
Standard+/Standard Monitor Mount System Double Rail – 9,5 kg
Max+/Max Monitor Mount System Single Rail – 5,05 kg
Max+/Max Monitor Mount System Double Rail – 9,8 kg
Load Capacity:
Monitor Mount System Single Rail: 30kg
Monitor Mount System Double Rail: 50kg
Single Rail set includes:
2x Pipe, 1x Rail, 2x Crossbar Clamps, 2x Crossbar Clamps Short, 2x Rail Baby Pin, 2x Rail Bracket
Double Rail set includes:
2x 2-section Pipe with Baby Pin 5/8, 2x Rail, 2x Crossbar Clamps, 2x Crossbar Clamps Short, 4x Rail Baby Pin, 4x Rail Bracket, 2x Rail Plastic Reduction
